In your operation
Compact precision platform
The 7.5 kg payload and 850 mm reach suit close-proximity tending, inspection and assembly without an oversized cell.
- Payload
- 7.5 kg
Product1 / 5
Universal RobotsIndustrial arms & cobots

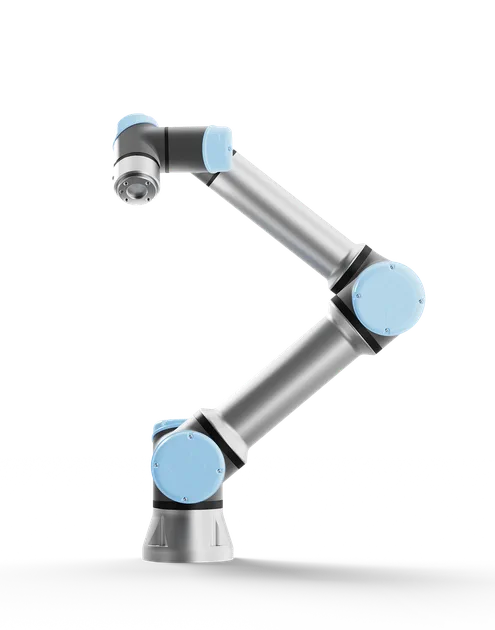

Universal Robots UR7e
A compact collaborative robot for repeatable precision work where floor space is limited and operators remain close to the process.
- Payload
- 7.5 kg
- Reach
- 850 mm
- Repeatability
- ±0.03 mm
Price on requestSAR
Own the equipment. Configuration and project scope are confirmed in your quote.
Compare productsPrices and commercial terms are confirmed in your quote. Purchase, short-term rental, long-term rental and RaaS are available; configuration, deployment and service scope depend on the project.
Product profile
Compact precision automation where reach is short, payload is moderate and floor space matters.
Machine tendingQuality inspection
- Product type
- Industrial arms & cobots
- Best for
- Manufacturing · Warehousing & logistics
- Environment
- Indoor
What it does for your operation
Task performance
Repeatable motion
Published ±0.03 mm repeatability supports precision processes when tooling and fixtures are correctly engineered.
- Repeatability
- ±0.03 mm
Site fit
Small cell footprint
A Ø151 mm robot footprint helps fit automation around existing workstations and machines.
- Footprint
- Ø151 mm
Safety & sensing
Engineered for safe use
Configurable safety functions support collaborative cell design; the completed application still requires a formal risk assessment.
- Safety functions
- 21 configurable
Define the supplied configuration.
The delivered scope is matched to the application and acceptance criteria.
Equipment & options
End effector; machine vision; pedestal or mobile base; application tooling; guarding or safety devices
Final payload, reach, tool, guarding and cycle time are confirmed against the actual process during the site and application assessment.
Operating conditions
IndoorWill it work at your site?
Access & operating limits
- Site planning
- Application review, payload and reach study, utilities, cell layout, risk assessment, operator training and an agreed acceptance test.
Final payload, reach, tool, guarding and cycle time are confirmed against the actual process during the site and application assessment.
Typical applications
Machine tending
inspection
light assembly
dispensing
screwdriving
testing
Systems & infrastructure
Integrations and compatibility.
Manufacturer-documented connections and compatible equipment. Building interfaces are checked against your installation.
Documented connectivity
Modbus TCP, EtherNet/IP adapter, PROFINET, ROS/ROS2 and tool I/O; final interface scope is application-specific.
Technical specifications.
- Payload
- 7.5 kg
- Reach
- 850 mm
- Repeatability
- ±0.03 mm
- Approx. maximum TCP speed
- 4 m/s
- Robot arm weight
- 20.7 kg
- Footprint
- Ø151 mm
- Protection rating
- IP54
Published figures depend on configuration and operating conditions. Final performance is confirmed for the deployed scope.
Before you decide.
Can the UR7e work beside people?
It is designed for collaborative applications, but every completed cell still requires a task-specific risk assessment.
Is the gripper included?
The end effector and application tooling are selected for the process and included in the commissioned RaaS configuration.
How is cycle time confirmed?
We validate reach, payload and cycle time against representative parts before final acceptance.
