In your operation
More payload in a compact cell
A 30 kg rated payload expands the range of parts, grippers and process tools that can be automated.
- Rated payload
- 30 kg
Product1 / 5
Universal RobotsIndustrial arms & cobots

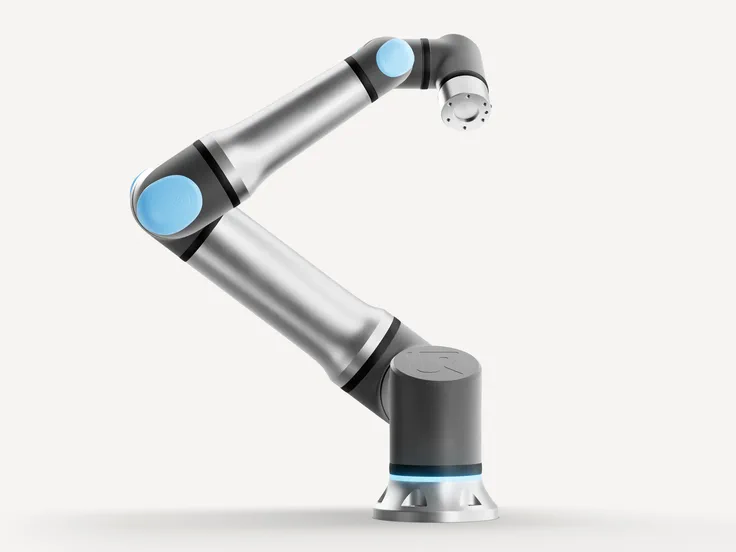

Universal Robots UR30
A high-payload collaborative robot for heavy machine tending, material handling and compact palletizing cells.
- Payload
- 30–35 kg
- Reach
- 1,300 mm
- Repeatability
- ±0.10 mm
Price on requestSAR
Own the equipment. Configuration and project scope are confirmed in your quote.
Compare productsPrices and commercial terms are confirmed in your quote. Purchase, short-term rental, long-term rental and RaaS are available; configuration, deployment and service scope depend on the project.
Product profile
High-payload applications that need a compact collaborative robot rather than the longest reach.
Machine tendingPalletizingWelding
- Product type
- Industrial arms & cobots
- Best for
- Manufacturing · Warehousing & logistics
- Environment
- Indoor
What it does for your operation
Task performance
Fast heavy handling
The published maximum TCP speed is approximately 4 m/s, subject to application limits and safe operating mode.
- Max TCP speed
- ≈4 m/s
Site fit
Balanced work envelope
A 1,300 mm reach and Ø245 mm footprint suit tending and palletizing cells that prioritize payload over maximum reach.
- Reach
- 1,300 mm
Safety & sensing
Industrial arm protection
The robot arm is rated IP65; the complete integrated cell must be assessed as a system.
- Arm protection
- IP65 rated
Define the supplied configuration.
The delivered scope is matched to the application and acceptance criteria.
Equipment & options
End effector; machine vision; pedestal or mobile base; application tooling; guarding or safety devices
Final payload, reach, tool, guarding and cycle time are confirmed against the actual process during the site and application assessment.
Operating conditions
IndoorWill it work at your site?
Access & operating limits
- Site planning
- Application review, payload and reach study, utilities, cell layout, risk assessment, operator training and an agreed acceptance test.
Final payload, reach, tool, guarding and cycle time are confirmed against the actual process during the site and application assessment.
Typical applications
Heavy machine tending
palletizing
part handling
welding
screwdriving
packaging
Systems & infrastructure
Integrations and compatibility.
Manufacturer-documented connections and compatible equipment. Building interfaces are checked against your installation.
Documented connectivity
Modbus TCP, EtherNet/IP adapter, PROFINET and tool I/O; final interface scope is application-specific.
Technical specifications.
- Rated payload
- 30 kg
- Extended payload
- up to 35 kg under defined conditions
- Reach
- 1,300 mm
- Repeatability
- ±0.10 mm
- Approx. maximum TCP speed
- 4 m/s
- Robot arm weight
- 63.5 kg
- Footprint
- Ø245 mm
- Robot arm protection
- IP65
Published figures depend on configuration and operating conditions. Final performance is confirmed for the deployed scope.
Before you decide.
When is 35 kg payload available?
The extended payload applies only under manufacturer-defined positions and conditions; we verify the actual load case.
Is the UR30 better than the UR20?
It offers more payload but less reach, so selection depends on the real work envelope and tooling mass.
What is included in RaaS?
The final package can include robot, tooling, integration, commissioning, monitoring, maintenance and SLA.
Explore the application.
Compare the approaches and site requirements in these related solution guides.
W—ROBOTICS deployment & supportThe robot is part
The robot is part
of the solution.
We help define the right setup for your operation, from site assessment and integration to team training and ongoing support.
Equipment, installation and service responsibilities are agreed in your proposal.
Discuss your deploymentLet’s talk about
your project.
Share your task and location. We’ll help define the configuration and commercial terms.
Universal Robots UR30
Universal Robots UR30Price on request
Get a quote
