In your operation
Bring stored goods to the workstation
R5 Pro travels on the AutoStore grid, retrieves bins and delivers them to ports. People or downstream automation complete the picking process at those stations.
Product1 / 2
AutoStoreStationary automation

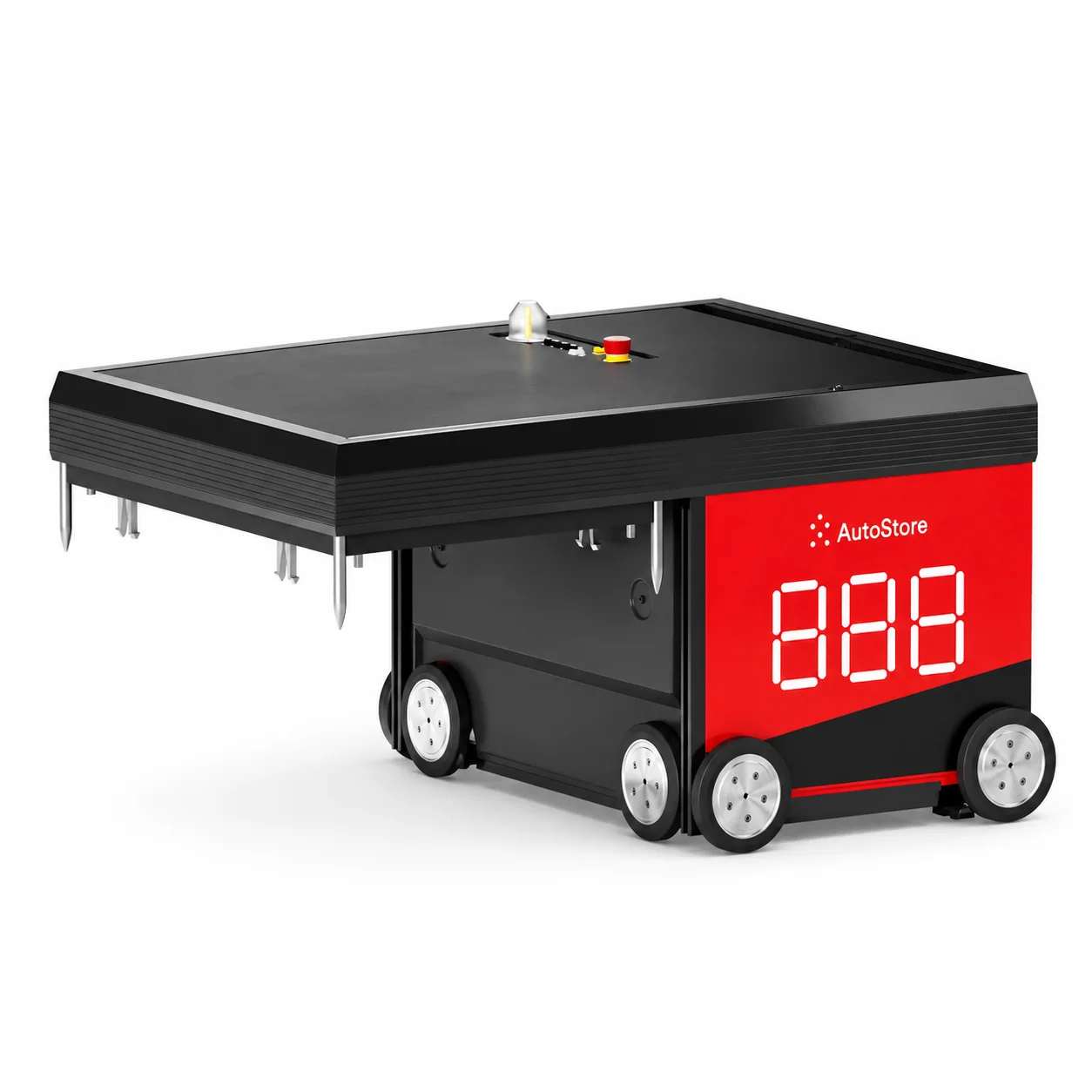

AutoStore R5 Pro / R5+ Pro
An AutoStore grid robot designed for extended fulfilment operations, retrieving bins and delivering them to workstations as part of a complete storage system.
- Bin contents
- 30 kg
- Grid speed
- 3.1 m/s
- Operating power
- 100 W
Price on requestSAR
Own the equipment. Configuration and project scope are confirmed in your quote.
Compare productsIndicative budget only, not a confirmed Saudi retail offer. Configuration, freight, tax, deployment and service are confirmed in your quotation. Rental and RaaS figures are planning estimates.
Product profile
Extend multishift bin fulfilment inside an AutoStore grid
Load moving
- Product type
- Stationary automation
- Best for
- Warehousing & logistics
- Environment
- Indoor
What it does for your operation
Daily operation
Use the Pro charging design for multishift work
The Pro variants are designed to reduce charging interruptions in longer operating schedules. Robot and charger quantities are sized against the actual order profile.
Connected systems
Add capacity within the grid system
Independently controlled robots share retrieval work. Additional robots can support throughput growth, while storage capacity also depends on grid and bin configuration.
Configuration
Match the robot to the bin height
R5 Pro handles 220 and 330 mm bins. R5+ Pro also supports the taller 425 mm format, so bin height determines which robot variant the system needs.
Site fit
Plan the grid, ports and charging together
The installation combines robots, grid, bins, ports, charging and software. Size storage and retrieval capacity around the order profile and workstation demand.
Operating conditions
IndoorWill it work at your site?
Access & operating limits
- System
- AutoStore grid, bins, ports, chargers and control software.
- Building
- Engineered slab loading, installation geometry and fire protection.
- Temperature
- Standard operating range 1–35°C.
- Operations
- Size the system around inventory, order profiles and required port capacity.
Part of a complete AutoStore grid, bin, port and software system. R5 Pro and R5+ Pro support different bin heights; the proposal specifies the full design.
Typical applications
Load moving
Systems & infrastructure
Integrations and compatibility.
Manufacturer-documented connections and compatible equipment. Building interfaces are checked against your installation.
AutoStore grid and control system
Native operation within an engineered AutoStore installation.
Technical specifications.
- Maximum bin contents
- 30 kg
- Maximum grid speed
- 3.1 m/s
- Operating power
- 100 W
- R5 Pro bin heights
- 220 / 330 mm
- R5+ Pro bin heights
- 220 / 330 / 425 mm
- Robot dimensions on Double/Double Grid (DDG), L × W × H
- R5 Pro: 988 × 700 × 545 mm
- Robot dimensions on Double/Double Grid (DDG), L × W × H
- R5+ Pro: 988 × 700 × 645 mm
Before you decide.
Can R5 Pro run around an ordinary warehouse floor?
No. It operates on an AutoStore grid and handles the system's bins.
Which bin heights does each variant support?
R5 Pro supports 220 and 330 mm bins. R5+ Pro supports those sizes plus 425 mm bins. The selected bin and grid configuration determine the robot variant.
What does DDG mean?
Double/Double Grid has two tracks in both directions, allowing robots to pass each other along either axis. Robots run above the storage bins and bring them to picking ports; they do not travel on ordinary warehouse aisles.
