In your operation
Reduce walking without giving up vertical storage

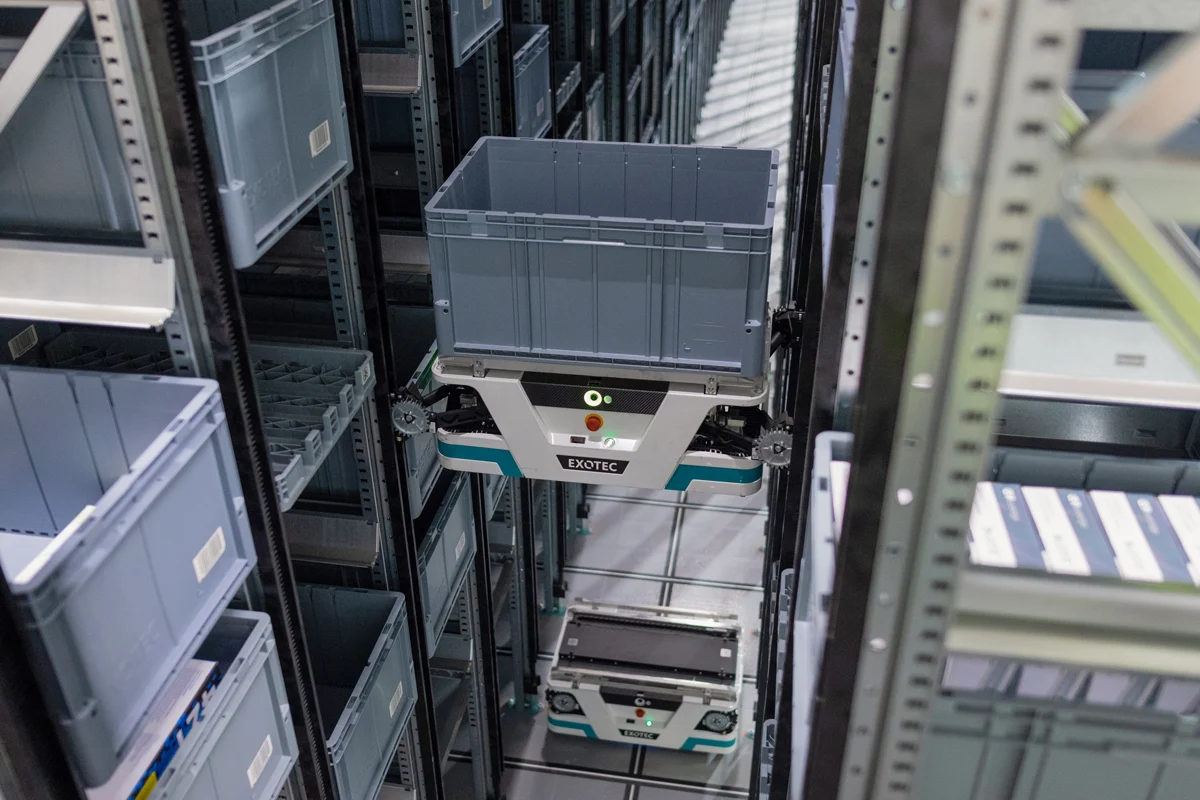

Skypod retrieves containers from the rack and brings them to a workstation. The operator handles the order while the robot performs horizontal and vertical transport.
Product
ExotecStationary automation
Exotec Skypod
A rack-climbing goods-to-person robot operating within the Exotec Skypod system, transporting containers between storage, workstations and exchangers.
- Container load
- 30 kg
- Climb height
- Up to 14 m
- Max. speed
- 4 m/s
Price on requestSAR
Own the equipment. Configuration and project scope are confirmed in your quote.
Compare productsIndicative budget only, not a confirmed Saudi retail offer. Configuration, freight, tax, deployment and service are confirmed in your quotation. Rental and RaaS figures are planning estimates.
Product profile
Bring containers down from high storage directly to fulfilment
Load moving
- Product type
- Stationary automation
- Best for
- Warehousing & logistics
- Environment
- Indoor
What it does for your operation
Task performance
Use the rack height for storage capacity
The robot supports climbing up to 14 m and inventory loads up to 30 kg. Container and system configuration determine the working limits.
Configuration
Use containers suited to the product assortment
Exotec bins, trays and approved customer containers accommodate different goods. Match the container dimensions, contents and handling requirements to the system.
Connected systems
Scale throughput within the system
Adjust robot capacity as order demand changes. Plan storage and workstation capacity alongside the fleet so picking and handoff points can handle the required flow.
Site fit
Design the complete storage and fulfilment flow
Racks, robots, workstations and exchangers operate as one installation. Floor routes, vertical storage and inbound/outbound handoffs should be designed together.
Operating conditions
IndoorWill it work at your site?
Access & operating limits
- Complete system
- Engineered Skypod racks, workstations, exchangers, charging and control software.
- Building
- Validate floor and rack loads, fire protection and clearances.
- Workstations
- Size picking, replenishment and handover around the order profile.
A complete goods-to-person system with robots, racks, workstations and software. Capacity and throughput depend on the proposed warehouse layout.
Typical applications
Load moving
Systems & infrastructure
Integrations and compatibility.
Manufacturer-documented connections and compatible equipment. Building interfaces are checked against your installation.
Exotec Skypod system
Native rack, workstation and exchanger coordination within the engineered system.
Technical specifications.
- Container load
- Up to 30 kg
- Storage height
- Up to 14 m
- Travel speed
- Up to 4 m/s
- Drive
- Four-wheel drive
- Operating temperature
- 0–40°C for the listed configuration
- Standard bin exterior footprint
- 650 × 450 mm.
- Standard bin heights
- 220, 320 or 420 mm.
- Tray-supported carton
- Up to 600 × 400 × 400 mm.
Before you decide.
Does a Skypod robot grasp individual items?
It retrieves and transports containers. Picking happens at the workstation or through separately configured automation.
Can it climb any warehouse rack?
No. It requires the compatible Exotec storage-system configuration.
Which containers fit the standard system?
Exotec bins have a 650 × 450 mm exterior footprint, with 220, 320 or 420 mm heights. The tray option supports cartons up to 600 × 400 × 400 mm. These are not the bins' internal usable dimensions. Custom containers require an engineered interface and are not automatically interchangeable.
Explore the application.
Compare the approaches and site requirements in these related solution guides.
W—ROBOTICS deployment & supportThe robot is part
The robot is part
of the solution.
We help define the right setup for your operation, from site assessment and integration to team training and ongoing support.
Equipment, installation and service responsibilities are agreed in your proposal.
Discuss your deploymentLet’s talk about
your project.
Share your task and location. We’ll help define the configuration and commercial terms.
Exotec Skypod
Exotec SkypodPrice on request
Get a quote
