In your operation
Delivery in a compact footprint
T11 carries meals between the service counter and tables in tighter dining layouts. Its 20 kg total load capacity suits smaller delivery batches.
Product
KEENON RoboticsDelivery & serving

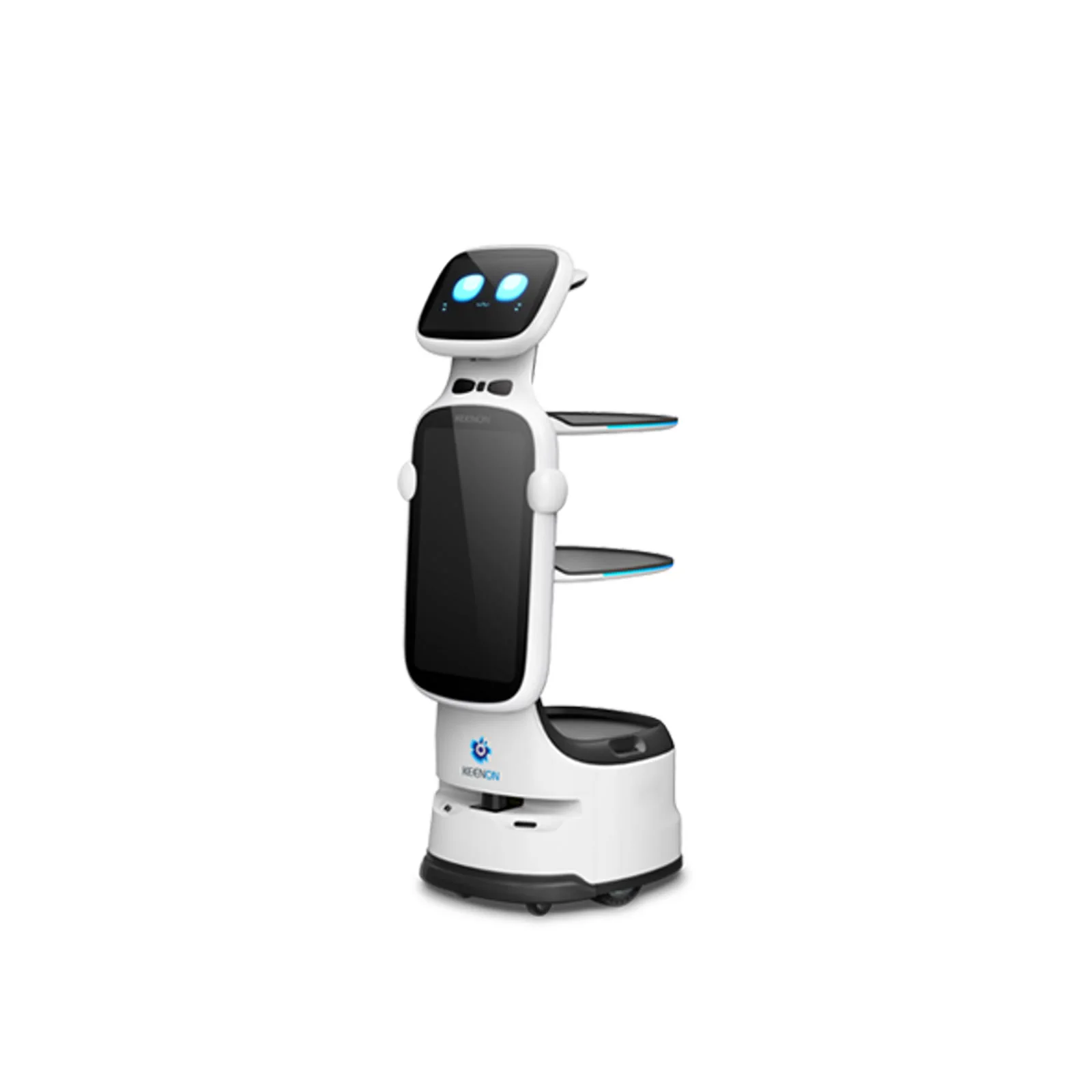

KEENON DINERBOT T11
T11 carries up to 20 kg through passages from 49 cm wide. Five stereo-vision sensors, tray detection and a six-wheel shock-absorbing chassis support table delivery and guest pickup.
- Payload
- 20 kg
- Min. passage
- 49 cm
- Battery life
- Up to 13.5 h
Indicative budget only, not a confirmed Saudi retail offer. Configuration, freight, tax, deployment and service are confirmed in your quotation. Rental and RaaS figures are planning estimates.
Product profile
Delivery through tighter restaurant aisles
Food & item deliveryPromotion & engagement
- Product type
- Delivery & serving
- Best for
- Hospitality · Retail
- Environment
- Indoor
What it does for your operation
Site fit
Navigate passages from 49 cm
Five stereo-vision sensors and visual SLAM support navigation and obstacle detection. Check the 49 cm clearance along the working route, including chair positions and turns.
- Minimum passage
- 49 cm
Safety & sensing
Reduce movement at the tray
The six-wheel shock-absorbing chassis and motion control help steady the load during starts, stops and floor transitions.
Task performance
Help guests collect their order
Tray detection supports self-pickup, while the display provides a place for instructions and promotions. Agree how staff handle a partially collected order.
Daily operation
Plan deliveries around the service period
Published battery life is up to 13.5 hours. Load, speed and the number of trips determine the charging schedule.
Operating conditions
IndoorWill it work at your site?
Access & operating limits
- Route
- minimum 49 cm passage, with turns checked under normal chair positions
- Loading
- trays and containers must fit the selected levels and load limits
- Operations
- provide charging access and a staff process for loading and incomplete pickups
Each middle level carries up to 5 kg within a 383 × 342 × 220 mm loading space. The bottom carries up to 10 kg within 383 × 342 × 285 mm. Keep the combined load within 20 kg.
Typical applications
Food & item delivery
Marketing & engagement
Technical specifications.
- Total payload
- 20 kg
- Dimensions (W × D × H)
- 463 × 384 × 1,123 mm
- Robot weight
- 38 kg
- Operating speed
- 0.1–1.0 m/s
- Battery life
- up to 13.5 h
- Minimum passage
- 49 cm
- Slope
- up to 5°
- Navigation
- five stereo-vision sensors with visual SLAM
- Middle-level loading space (L × W × H)
- 383 × 342 × 220 mm
- Bottom-level loading space (L × W × H)
- 383 × 342 × 285 mm
- Per-level limits
- 5 kg on each middle level; 10 kg on the bottom; 20 kg combined
Before you decide.
How much can T11 carry?
The combined limit is 20 kg. Each middle level is limited to 5 kg and the bottom to 10 kg.
What size load fits each level?
KEENON lists 383 × 342 × 220 mm for middle levels and 383 × 342 × 285 mm for the bottom, in length × width × height. Keep dishes and containers within those spaces.
Will it fit every 49 cm aisle?
49 cm is the stated minimum passage. Turns, moving chairs and pickup stops need additional room.
